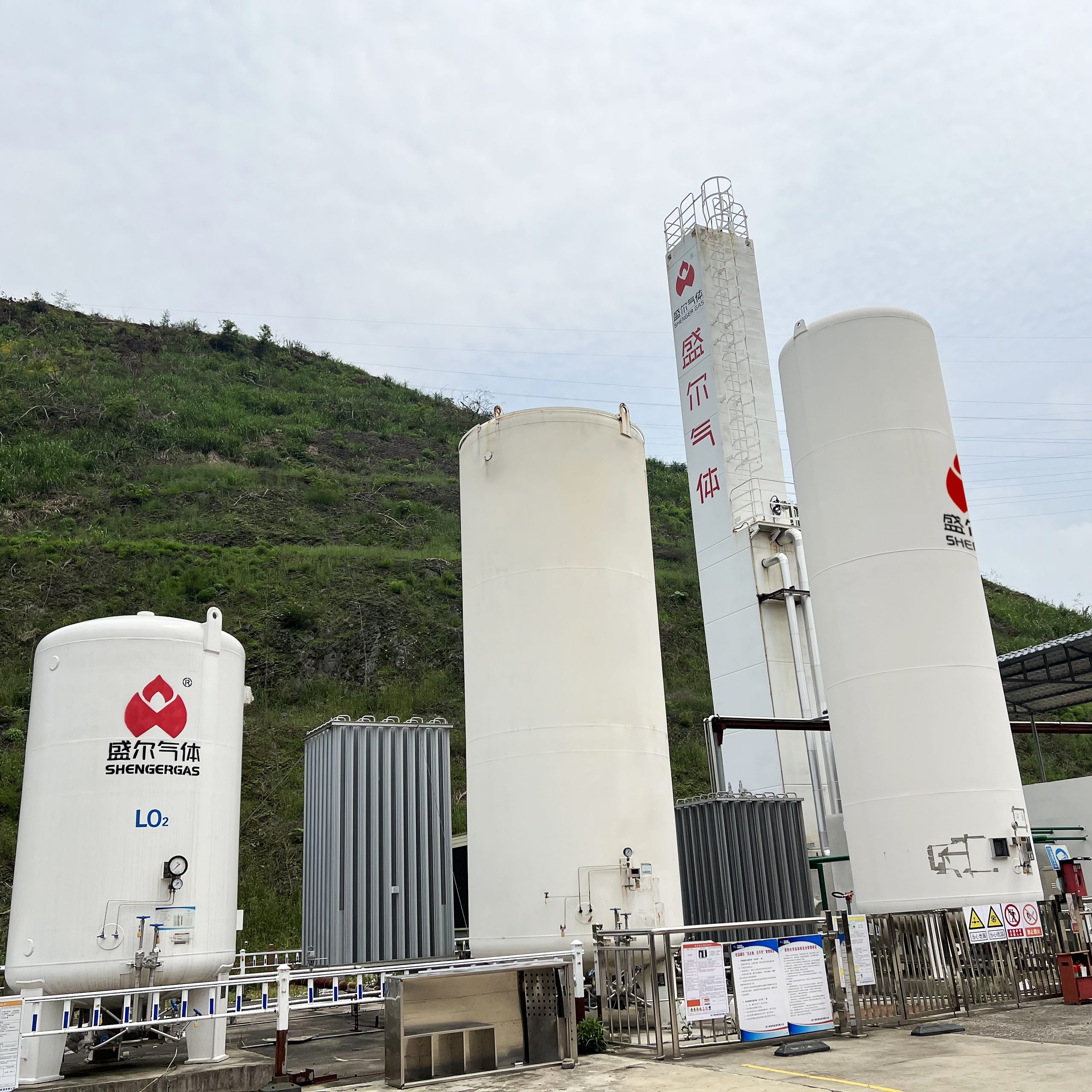

Cryogenic air separation remains the reference technology for large, continuous supplies of oxygen and nitrogen at industrial purities. It is mature, widely deployed, and—when designed well—remarkably reliable. Yet it is also unforgiving: the same integration choices that define product purity and turndown capability also set the long-term power bill. In Process Design and Energy Efficiency in Cryogenic Air Separation Units, the most useful mindset is not “optimize a component,” but “close the system energy balance with minimal irreversibility.” Compression, refrigeration generation, heat recovery, and rectification are tightly coupled, and small pressure or temperature penalties can persist for decades.
Efficiency starts with the system boundary
A cryogenic ASU converts electrical power into (1) pressure potential in the air stream and (2) low-temperature refrigeration in the cold box. Separation is then achieved by distillation, which requires the right temperature levels and reflux flows. This is why Process Design and Energy Efficiency in Cryogenic Air Separation Units is largely determined by three interacting decisions:
- Pressure levels (main air compressor discharge, HP/LP column pressures, product delivery pressures)
- Heat-exchange quality (main heat exchanger approach temperatures, subcooling margins, distribution)
- Refrigeration strategy (expander/booster arrangements, bypassing, control window)
If these are set coherently, the plant can be both efficient and stable. If they are set inconsistently, operators often “buy stability” with higher pressures, wider exchanger approaches, and more venting—each of which increases specific power.
Process anatomy: where the kWh is spent
Most large ASUs share a common structure, even if details vary by product slate (GOX/GN₂, LIN/LOX, argon recovery) and by site constraints.
Air compression and intercooling. Air compression is typically the dominant electrical load. Intercooling reduces discharge temperatures and lowers compression work for a given pressure ratio, but it also sets the thermal state entering pre-purification.
Pre-purification. Molecular sieve systems remove H₂O and CO₂ (and often hydrocarbons) to prevent freezing and plugging in the cold box. Breakthrough safety margins matter: a “tight” design can look efficient until transient upsets force conservative operation.
Main heat exchanger (MHE). Clean air is cooled against returning product and waste streams. Exchanger approach temperatures are an efficiency lever and a stability lever at the same time; overly aggressive pinches can narrow operating margins during ambient swings or turndown.
Refrigeration generation. Turboexpanders provide the refrigeration duty by extracting work from a high-pressure stream. Whether the expander is paired with a booster/compander arrangement depends on pressure scheme and the economics of work recovery versus compression.
Double-column distillation. An HP column and LP column are thermally coupled through a condenser-reboiler. The pressure difference allows nitrogen to condense while oxygen boils, enabling separation at feasible temperature levels.
Product handling. Gaseous oxygen delivery pressure, nitrogen export pressure, and any liquid production can change the energy picture significantly. A plant that makes liquids is not directly comparable to one that exports only gas.
This overview becomes actionable when you trace losses across blocks. Process Design and Energy Efficiency in Cryogenic Air Separation Units improves most when losses are prevented rather than compensated elsewhere.
The design levers that most strongly affect specific power
1) Pressure levels, pressure drops, and “hidden” compression
Raising discharge pressure can simplify column driving forces, but it increases compressor work and often increases pressure drops throughout the cold box. Conversely, pushing pressures too low can starve the condenser-reboiler of temperature lift or reduce control robustness. Practical design typically aims to:
- Choose HP/LP pressures that keep the condenser-reboiler stable over the full ambient range
- Minimize pressure drop through valves, piping, heat exchangers, and column internals
- Evaluate oxygen and nitrogen product compression as part of the base design, not a downstream add-on
In real plants, “unplanned compression” is common: undersized valves, conservative filters, or high column ∆P force the main air compressor or product compressors to operate at higher head than intended.
2) Main heat exchanger approach temperatures and distribution
The MHE is a major source of exergy destruction when temperature differences are unnecessarily large. Tightening approach temperatures reduces refrigeration demand, but it increases exchanger size and can tighten controllability. The best practice is not “as tight as possible,” but “tight where it matters, with robust margins where it protects operation.” Within Process Design and Energy Efficiency in Cryogenic Air Separation Units, engineers often target:
- A tight cold-end approach to reduce irreversibility
- Sufficient warm-end margin to manage transient adsorption switching effects
- Good flow distribution and cleanliness discipline to avoid maldistribution and performance drift
A poor distribution design can silently erode efficiency and create temperature pinches that appear only during turndown or during seasonal ambient extremes.
3) Expander strategy and refrigeration placement
Turboexpander performance is strongly tied to inlet conditions and the operating window. From an efficiency perspective, avoid turning valuable pressure into heat through throttling and excessive bypassing. From a stability perspective, avoid designs that require the expander to operate too close to surge or outside a reasonable map during routine load changes.
Many modern designs improve both goals by ensuring that refrigeration generation aligns with where cold is actually needed—without forcing fragile control logic.
4) Column internals, reflux economics, and purity margins
Distillation energy is paid through the refrigeration and compression system. If separation is inefficient, the plant compensates with higher reflux, which increases condenser-reboiler duty and raises specific power. Column internals influence:
- Mass transfer efficiency (stages per meter)
- Pressure drop (which feeds back into compressor work)
- Hydraulics at turndown (which determines stable operating range)
Better distributors, carefully selected packing/tray types, and well-chosen reflux control schemes often provide a “quiet” efficiency gain that is also visible as smoother operation.
Engineering metrics used to compare designs
Researchers may prefer exergy efficiency, but plant evaluation typically begins with measurable, operationally meaningful metrics. In Process Design and Energy Efficiency in Cryogenic Air Separation Units, comparisons are most credible when normalized by purity, delivery pressure, and product slate.
- Specific power: kWh per Nm³ O₂ or per ton O₂ (and similarly for N₂)
- Recovery / yield: product recovered relative to theoretical feed availability
- Pressure penalty accounting: main air compressor head plus downstream compression needs
- Turndown behavior: how specific power and purity margins change below design load
A key point: a low kWh/Nm³ claim is meaningless unless it states purity, delivery pressure, and whether liquids are produced.
Typical design ranges for large ASUs
The table below summarizes representative ranges used in many modern industrial plants. Actual values depend on capacity, ambient conditions, integration choices, and whether the plant produces liquids or argon.
Table: Typical ranges relevant to Process Design and Energy Efficiency in Cryogenic Air Separation Units
| Item | Typical range (indicative) | Efficiency relevance |
|---|---|---|
| Main air compressor discharge | ~5–8 bar(a) | Drives primary power; interacts with column pressures |
| HP column pressure | ~5–6.5 bar(a) | Enables N₂ condensation for the condenser-reboiler |
| LP column pressure | ~1.2–1.5 bar(a) | Sets O₂ boiling level and impacts column ∆P and hydraulics |
| Pre-purification outlet dryness | dew point typically ≤ −70 °C equivalent | Protects cold box from freezing and plugging |
| MHE cold-end approach | ~1–3 K (design target) | Smaller approach reduces refrigeration demand |
| GOX purity (typical industrial) | ~93–99.5% | Higher purity generally increases separation duty |
| GN₂ purity (typical industrial) | ~99.9–99.999% | Ultra-high purity increases reflux and/or complexity |
| GOX specific power (indicative) | ~0.35–0.55 kWh/Nm³ O₂ | Strongly affected by delivery pressure and liquid production |
| GN₂ specific power (indicative) | ~0.20–0.40 kWh/Nm³ N₂ | Depends on purity, pressure, and co-product strategy |
| Stable turndown window | commonly ~50–100% (design dependent) | Control margins and hydraulics dominate part-load performance |
Operational stability is part of efficiency
The most efficient steady-state design can become expensive if it is difficult to run. Frequent expander trips, column upsets, or adsorption breakthrough events often push operating teams toward conservative setpoints: higher pressures, wider temperature approaches, and increased venting. Those are direct efficiency losses.
In Process Design and Energy Efficiency in Cryogenic Air Separation Units, stability is improved by designing for real disturbances:
- Ambient swings: air density and compressor maps shift; condenser-reboiler temperature lift changes
- Feed variability and contamination risk: front-end margins prevent cold box incidents
- Demand fluctuations: product draw changes reflux needs and column levels
- Start-up and shutdown cycles: designs that tolerate thermal gradients reduce long-term degradation
A practical rule is that “efficient and stable” beats “theoretical minimum” every time, because the plant will spend most of its life in off-design reality.
Upgrade paths that improve efficiency without reinventing the plant
Not every project needs a novel flowsheet. Many gains come from disciplined design and modern hardware choices:
- Lower ∆P design in cold box valves, piping, and column internals
- Variable-speed drives on major rotating equipment to reduce throttling at partial load
- Improved MHE distribution and monitoring to prevent maldistribution-driven efficiency drift
- Expander control refinement to reduce bypassing and keep operation in better efficiency zones
- Better energy instrumentation (true power and mass balance visibility) to make losses measurable
These changes are attractive because they tend to improve reliability as well as kWh.
Conclusion
The main message of Process Design and Energy Efficiency in Cryogenic Air Separation Units is that power consumption is rarely dominated by a single “magic component.” Instead, it is shaped by pressure choices, heat-exchange irreversibility, expander strategy, and column separation economics—plus the control margins that let the plant stay near its best point through real disturbances. When the flowsheet is integrated coherently, efficiency improvements often arrive as a package: lower specific power, smoother operation, fewer trips, and better long-term performance retention.
