Overview of Plate-Fin Heat Exchangers
Plate-fin heat exchangers (PFHEs) are a class of compact heat exchangers that provide extremely high heat transfer efficiency in a small footprint. They are constructed from multiple layers of thin, corrugated fins and smooth plates that are vacuum-brazed or diffusion-bonded together. Each layer creates a narrow channel; adjacent layers carry alternate hot and cold fluid streams. This multi-stream configuration and the high surface area-to-volume ratio allow PFHEs to achieve small temperature approaches (often 1–2 K or less) while remaining lightweight and compact. These features make PFHEs particularly valuable in applications requiring high compactness and precise thermal control, such as cryogenic processes, aerospace heat recovery, and hydrogen liquefaction.
Plate-fin units are often referred to as brazed aluminum heat exchangers (BAHX), reflecting their aluminum alloy construction and brazing manufacturing method. They were first adopted in large-scale cryogenic air separation (and LNG) plants around World War II, and later spread to other cryogenic industries. Unlike traditional shell-and-tube exchangers, PFHEs have no moving parts or gaskets, which improves reliability and reduces maintenance in low-temperature service. The design flexibility also allows heat exchange between multiple streams in a single core, enabling integration of refrigeration circuits or precooling loops in a cryogenic system. In a cryogenic air separation unit (ASU), the main plate-fin heat exchanger (often called the cold box main heat exchanger) is the heart of the refrigeration cycle, greatly influencing system efficiency and capacity. Its compact design reduces the overall size of the cold box and lowers heat losses to ambient.
插板鰭式熱交換器概述
插板鰭式熱交換器係一種緊湊型嘅熱交換器，擁有極高嘅傳熱效率同埋表面積。插板鰭式熱交換器由多層薄鋼板同波紋鰭片交替堆疊而成，之後通過真空釬焊（或擴散焊）整合成一體。每一層結構形成狹窄通道，熱流體同冷流體分別喺交替嘅通道中流動。高表面積同多通道配置令插板鰭式熱交換器喺體積細嘅情況下都可以達到極小嘅溫差，保持高傳熱效率，同時體積同重量都好細，適合應用喺需要高效冷熱交換嘅行業。
呢種熱交換器有時又稱為鋁焊板式換熱器（Brazed Aluminum Heat Exchanger），反映咗其鋁合金材料同釬焊製作工藝。插板鰭式熱交換器早喺中日戰爭時期已經應用喺深冷空分同液化天然氣工廠，能夠有效處理液化氣體並實現接近平衡溫度嘅冷卻。唔同於傳統殼管式熱交換器，插板鰭式冇運動部件同密封墊片，喺低溫環境下更加可靠耐用。由於設計靈活，可以同時處理多種流體，因此可以喺冷箱中將多個冷流道合併於一部裝置，提升熱能回收效率。喺深冷空分裝置裏面，主熱交換器（又稱冷箱主換熱器）係制冷循環嘅核心，其緊湊設計可以縮細整個冷箱規模並降低對外界嘅熱損失。
Working Principles of Plate-Fin Heat Exchangers
The working principle of a plate-fin heat exchanger relies on highly efficient conduction and convection across closely spaced surfaces. Alternating streams of hot and cold fluid are directed through the stacked fin channels. Heat transfers from the hotter stream to the colder one by conduction through the fins and separator plates and by convection within each fluid channel. Typically, the flow arrangement in cryogenic PFHEs is countercurrent (or near-countercurrent), with the two streams moving in opposite directions to maximize heat transfer. Corrugated fins induce turbulence and promote cross-mixing, which further enhances the convective heat transfer coefficient. The bonded fins and plates create a rigid, high-strength core that can operate at high pressures without leakage.
Plate-fin heat exchangers can handle single-phase gases as well as phase-changing flows. For example, one stream may vaporize liquid oxygen while the other condenses liquid nitrogen, recovering latent heat as well as sensible heat. Internal distributors or multi-pass configurations are used to ensure uniform flow distribution and control pressure drop, especially on the cold side. The combination of very high surface area and intense mixing leads to a large NTU (number of transfer units) and thermal effectiveness near unity, meaning the cold outlet can approach the hot inlet temperature very closely.
工作原理
插板鰭式熱交換器嘅工作原理係將兩種或者多種工藝流體分別導入相鄰嘅鰭片通道中，從而實現熱量轉移。熱流體會透過導熱鰭片同隔板將熱量傳遞俾冷流體。通常喺深冷空分裝置入面，會採用逆流結構——即兩種流體沿相反方向流動，從而最大化傳熱效率。波紋鰭片嘅設計令通道內流體產生紊流或者交叉流動，增強對流傳熱。同時，薄板同鰭片之間嘅導熱距離只係毫米級，熱阻很細，可以快速導熱。整個換熱器通過真空釬焊或擴散焊連成一體，形成堅固嘅核心結構，可以喺高壓環境下運行而唔滲漏。
插板鰭式熱交換器可以處理單相流體或者相變流體。例如可以喺一側用嚟蒸發液態氧吸熱，另一側用嚟冷凝液態氮放熱，將相變熱納入換熱過程。設計時通常會採用分流裝置或者多通道佈局，以確保各通道有均勻流量，並控制壓降。由於擁有非常大嘅換熱表面積同強力混合特性，PFHE嘅傳熱效率（NTU）非常高，換句話講，冷側出口溫度可以非常接近熱側入口溫度，實現高效嘅熱平衡。
Structural Features and Materials
Structurally, a plate-fin heat exchanger consists of stacked modules of plates and fins enclosed by supporting side bars and covers. Flat separator plates alternate with corrugated fin packs to form the core. End plates act as headers and have ports through which each fluid stream is introduced and collected. Typical fin patterns include plain straight fins, herringbone (chevron) fins angled to create counterflow mixing, perforated and offset fins with cut-outs, or louvered fins, each tailored to a specific flow and heat transfer requirement. These fins both enlarge the heat transfer area and support the plate spacing under high pressure.
The entire core is bonded in a brazing furnace or diffusion bonding process, producing a monolithic, gasket-free unit. Common materials are aluminum alloys (often brazed aluminum for cryogenic service) and stainless steel; nickel alloys or copper may be used in specialized cases. Aluminum alloy PFHEs are favored for their excellent low-temperature strength, high thermal conductivity, and low weight, while stainless steel PFHEs are used for very high pressures, cryogenic hydrogen service or corrosive environments. Channel heights are typically only a few millimeters, which maximizes heat transfer area but requires precise manufacturing. Designers sometimes incorporate features like corrugated side-bars or expansion joints to relieve thermal stresses from the large temperature changes in cryogenic cycles.
結構特點與材料
插板鰭式熱交換器嘅核心由疊合嘅隔板和平行排列嘅波紋鰭片組成，整個核心被側板同端板封裝。隔板同鰭片交替堆疊，每一對隔板中間有一組波紋鰭片形成流道。端板通常有多個接口，用嚟連接各個流體嘅入口和出口。常見嘅鰭片形狀包括直線型、斜鰭型（人字形）同穿孔型等，呢啲設計可以引導流體作交叉流動或分散流場，以增強傳熱效果。鰭片唔單止大大增加傳熱面積，仲幫助保持板間距離，令換熱器喺高壓運行時亦能保持結構穩定。
插板鰭式熱交換器嘅板片同鰭片係通過真空釬焊或者擴散焊一次性熔合成個整體，完全冇用咗密封墊。常用材料包括鋁合金（尤其係用於深冷空分裝置嘅鋁焊板）同不鏽鋼，特殊情況下可能用到鎳基合金或者銅合金。鋁合金材質嘅PFHE喺低溫下強度高、導熱好、重量輕，因此非常適合用於低溫氣體液化；而不鏽鋼PFHE則適合更高壓力、氫氣工藝或者腐蝕性介質。通道高度通常只有幾毫米，增大咗單位體積傳熱面積，但對加工精度要求較高。設計時有時會加入波紋側板或者膨脹節等結構，吸收因溫度梯度造成嘅熱應力。
Heat Transfer Mechanisms
Heat transfer in plate-fin heat exchangers occurs by convection on the fluid side and conduction through the metal walls. Because the channels are very shallow, fluid velocities are high and flows are usually turbulent or in a transitional regime, producing large convective heat transfer coefficients (often several thousand W/m²K). The fins and plates are very thin and short, so solid conduction resistance is minimal. This combination of high convection and low conduction resistance yields an effective thermal path for heat exchange. Moreover, the effective transfer area per unit volume is enormous—on the order of 1000–3000 m² of surface area per m³ of core—far higher than conventional exchangers.
In cryogenic applications, latent heat transfer further enhances performance: for example, condensing nitrogen or evaporating oxygen within the PFHE transfers large amounts of heat. Designers quantify heat transfer performance using the number of transfer units (NTU) or effectiveness, and PFHE cores often achieve NTU values that make their effectiveness approach unity. This means the cold outlet can approach the inlet temperature of the hot stream very closely (small approach temperature). Additionally, the multi-stream design allows combination of heat exchange duties (such as precooling, liquefaction, vaporization) in one integrated device, improving overall plant exergy efficiency.
傳熱機制
插板鰭式熱交換器內嘅傳熱機制主要包括兩邊流體之間嘅對流換熱同金屬材料嘅導熱。由於流道高度僅有幾毫米，流體流經時速度快而且往往會產生紊流或者強對流，令對流換熱係數非常高（通常可以達到數千 W/m²K）。同時，鰭片同隔板都好薄，熱傳導距離極短，固體導熱阻力極低。呢種對流換熱強而導熱阻力弱嘅組合提供咗良好嘅熱通路，使熱量快速在流體間傳遞。此外，由於核心體積比表面積極大（每立方米體積內表面積可能達到數千平方米），比傳統殼管式熱交換器大得多，進一步提升整體傳熱能力。
喺深冷應用中，相變換熱亦顯著增強傳熱：例如喺插板鰭式換熱器內，液氮冷凝或者氧氣蒸發可以吸放大量潛熱。工程師通常用傳熱單元數（NTU）同熱交換效率（effectiveness）嚟評估性能，PFHE通常可以實現非常高嘅NTU，令效率接近理論最大值。換言之，冷側出口溫度可以非常接近熱側入口溫度（極細嘅溫差）。多流體佈局亦容許在同一裝置中集成多段換熱過程（例如預冷、液化、蒸發），從而提高整體工藝嘅熱力學效率。

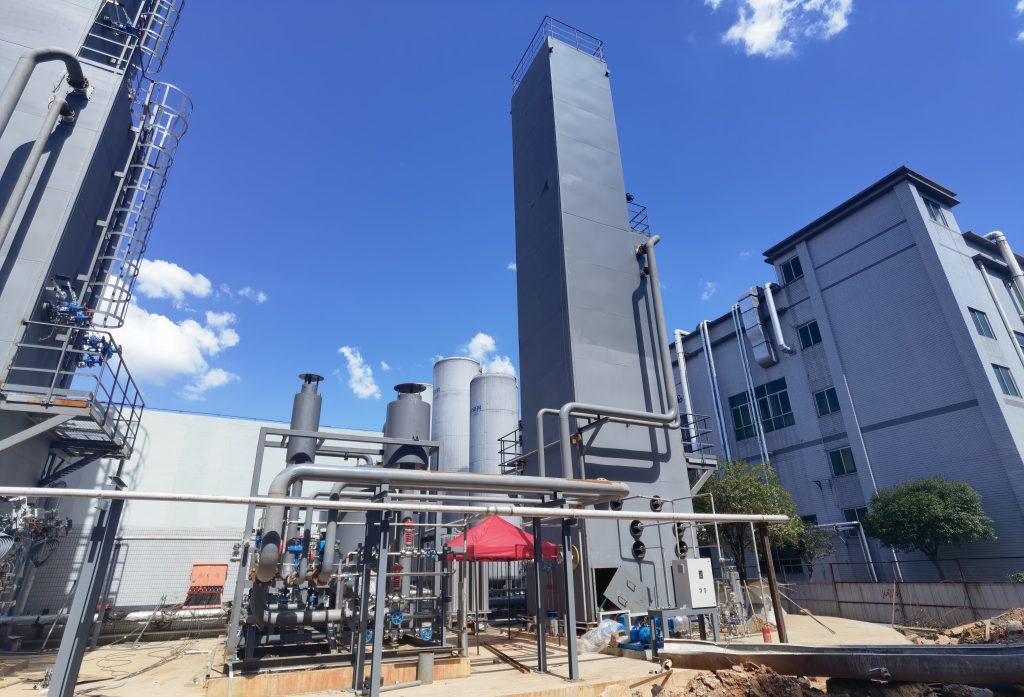

Advantages in Cryogenic Air Separation Applications
Plate-fin heat exchangers offer several advantages in cryogenic air separation plants. Their exceptionally high heat transfer efficiency allows approach temperature differences often in the range of 1–2 K or even lower between cold and warm streams. This translates into significant savings in compression power and refrigeration duty. Because of their compact size and low weight, PFHEs reduce the required size of the cold box and minimize heat inleak from the surroundings. Modular brazed construction makes these exchangers reliable and easy to assemble within the insulation shell.
Multi-stream capability is another major benefit. PFHE cores can contain multiple inlet and outlet pairs, enabling simultaneous precooling of incoming air and warming of exhausts in one device. For example, liquid oxygen reflux, nitrogen condenser reboilers, and air precooling streams can all share the same core. Brazed aluminum PFHEs maintain high strength at cryogenic temperatures and have low thermal mass, which helps during plant start-up and transients. Overall, their high surface area and low hold-up volume enable quick thermal response and fine temperature control.
One drawback is that the small flow channels require very clean process gas; particulate or liquid contamination can foul or block the passages, so upstream filtration is essential. Also, any brazing or weld leak at high pressure can cause inefficiency or safety hazards, so stringent quality control is required during manufacturing.
在深冷空分應用中的優勢
喺深冷空分系統入面，插板鰭式熱交換器嘅高換熱效率帶嚟多個優勢。首先，由於可以實現非常細微嘅溫差，整個工藝所需嘅額外壓縮能量會大幅降低，從而節省能耗。換熱器結構緊湊、重量輕，令冷箱體積同所需隔熱面積減至最低，並且可模組化設計，方便運輸同安裝。多流道設計更可以同時預冷進氣同回收排氣熱量，例如高壓空氣同液氮、液氧返流之間嘅熱交換，都能喺一部換熱器內完成，提高整體熱回收率。
此外，採用鋁合金釬焊嘅PFHE喺低溫下強度高、熱慣性低，有利於設備啟動速度快同精準調節溫度。由於其大表面積同細微管道體積，PFHE對溫度變化反應靈敏，換熱速度快、熱平衡時間短。不過，細小通道亦帶嚟挑戰：如果工藝氣體未經充分過濾而帶有顆粒或液滴，可能會造成堵塞。釬焊或焊接接頭如出現漏縫，高壓運行時可能造成效率損失甚至安全問題，因此製造時需要嚴格品質控制和定期檢測。
Design and Performance Optimization
Designing an optimal plate-fin heat exchanger requires balancing heat transfer performance against pressure drop, size, and manufacturability. Key design parameters include fin geometry (height, thickness, pattern, pitch) and channel dimensions. Denser fins or more complex patterns (e.g. serrated or offset fins, perforated designs) can greatly enhance heat transfer by increasing area and inducing mixing, but they also raise flow resistance. Engineers must optimize the number of passes or separate blocks in the core to distribute flow and manage pressure drop, especially in the cold, high-density streams of a cryogenic process. Overall, finding the right configuration often requires iterative calculation of thermal effectiveness and pressure drop to meet the process requirements.
Modern PFHE design frequently uses computational fluid dynamics (CFD) and multi-objective optimization to navigate trade-offs between efficiency and cost. For instance, researchers optimize fin patterns and core layouts to maximize the second-law efficiency of the entire ASU. Special features such as expansion joints, corrugated side-bars, or specially slotted fins can be added to absorb thermal stresses from large temperature gradients. Clean operation is also critical: designers include filtration and freeze control measures to prevent fouling in these small passages. By leveraging advanced simulation tools and precise fabrication, engineers continuously improve plate-fin heat exchangers to achieve higher thermal performance and reliability.
設計與性能優化策略
插板鰭式熱交換器嘅設計與優化需要在傳熱性能、壓降同製造成本之間取得平衡。工程師會調整鰭片嘅幾何參數（高度、厚度、形狀、間距）同通道佈局，嚟控制流場同增加換熱面積。密集嘅鰭片或者特殊結構（如穿孔鰭、錯流鰭）雖然可以提高對流換熱，但同時會導致更大嘅壓力損失，所以通常要反覆計算同模擬，評估唔同組合嘅換熱效果同流阻情況，以揀出最佳方案。
現代設計通常會運用計算流體力學（CFD）同多目標優化技術，嚟研究效率和成本之間嘅折衷。設計者會優化鰭片圖案同核心佈局，將整個空分系統嘅總熱力學效率最大化。為咗降低熱應力，啲設計會加入膨脹節、波紋側板或者斷續鰭片等結構。長期運行時亦需確保系統潔淨，以免堵塞細小通道，因此換熱器通常搭配精密過濾裝置。透過先進模擬工具同精密製造，插板鰭式換熱器嘅性能和可靠性得以持續提升。
Conclusion
Plate-fin heat exchangers remain the technology of choice for efficient cryogenic processes due to their unmatched combination of compactness, high thermal performance, and flexibility. Ongoing advancements in design and manufacturing—such as improved brazing techniques, advanced alloys, and digital simulation tools—are further enhancing PFHE capabilities. In cryogenic air separation, optimized plate-fin exchangers enable higher product yields and lower energy consumption than many alternative exchanger types.
Overall, plate-fin heat exchangers are the cornerstone of modern ASU heat exchanger design. Engineers continually refine their configurations and control strategies to push thermal efficiency and reliability even higher, driving toward more cost-effective and sustainable cryogenic air separation systems.
結論
總之，插板鰭式熱交換器以其卓越嘅換熱效率同緊湊型設計成為現代深冷空分裝置換熱系統嘅核心。隨著計算模擬技術、製造工藝（例如真空釬焊或增材製造）同材料性能嘅不斷改進，PFHE嘅性能和可靠性將持續提升。透過不斷優化其結構同工藝配置，插板鰭式熱交換器將繼續推動深冷空分系統實現更高產能和更低能耗，從而促進更加高效、可持續嘅氣體分離工藝。
